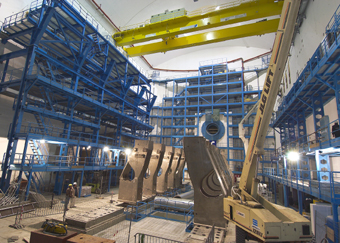

Eighteen feet made of stainless steel will support the barrel ATLAS detector in the cavern at Point 1. In total, the ATLAS feet system will carry approximately 6000 tons, and will give the same inclination to the detector as the LHC accelerator.
The installation of the feet is scheduled to finish during January 2004 with an installation precision at the 1 mm level despite their height of 5.3 metres. The manufacture was carried out in Russia (Company Izhorskiye Zavody in St. Petersburg), as part of a Russian and JINR Dubna in-kind contribution to ATLAS. Involved in the installation is a team from IHEP-Protvino (Russia), the ATLAS technical co-ordination team at CERN, and the CERN survey team. In all, about 15 people are involved.
After the feet are in place, the barrel toroid magnet and the barrel calorimeters will be installed. This will keep the ATLAS team busy for the entire year 2004.
Other (French)
Le tonneau du détecteur ATLASreposera sur dix-huit pieds en acier inoxydable dans sa caverne située au point 1. Le système des pieds d'ATLAS supportera au total environ 6000 tonnes et donnera au détecteur la même inclinaison que celle de l'accélérateur LHC.
L'installation des pieds devrait s'achever en janvier 2004 avec une précision de l'ordre du millimètre, malgré leur taille de 5,3 mètres. Ces imposantes pièces ont été fabriquées en Russie (société Izhorskiye Zadovy à St-Pétersbourg) au titre d'une contribution en nature à ATLAS de la Russie et du JINR Doubna. L'installation est assurée par une équipe de l'IPHE de Protvino, l'équipe de coordination technique d'ATLAS du CERN, et une équipe de géomètres du CERN, soit une quinzaine de personnes au total.
Une fois les pieds mis en place, l'aimant toroïdal et les calorimètres du tonneau seront installés. Une tâche qui devrait occuper l'équipe d'ATLAS pendant toute l'année 2004.
